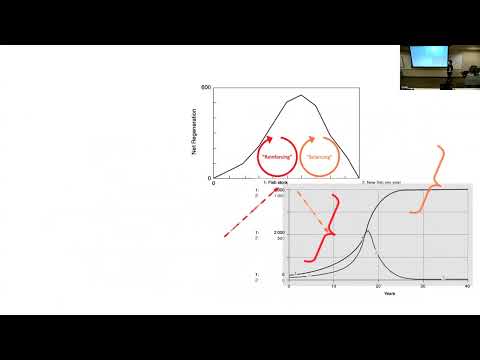

In this lecture, we pivot from our introduction to system dynamics modeling in general to discuss the broader endogenous perspective, where macroscopic observables of a system are a function of internal, not external, causes. That motivates the rest of the lecture, which introduces the "Causal Loop Diagram" (CLD). A CLD includes a network of links (representing positive or negative causal relationships) that may form loops (that are positive or negative). We can use CLD's to build stock-and-flow diagrams (dynamical systems models) or to gain insights into the trajectories produced by existing stock-and-flow diagrams.
Archive of lectures given as part of SOS 212 (Systems, Dynamics, and Sustainability) at Arizona State University with instructor Theodore (Ted) Pavlic.
Thursday, January 20, 2022
Lecture B1 (2022-01-20): Introduction to Causal Loop Diagrams
